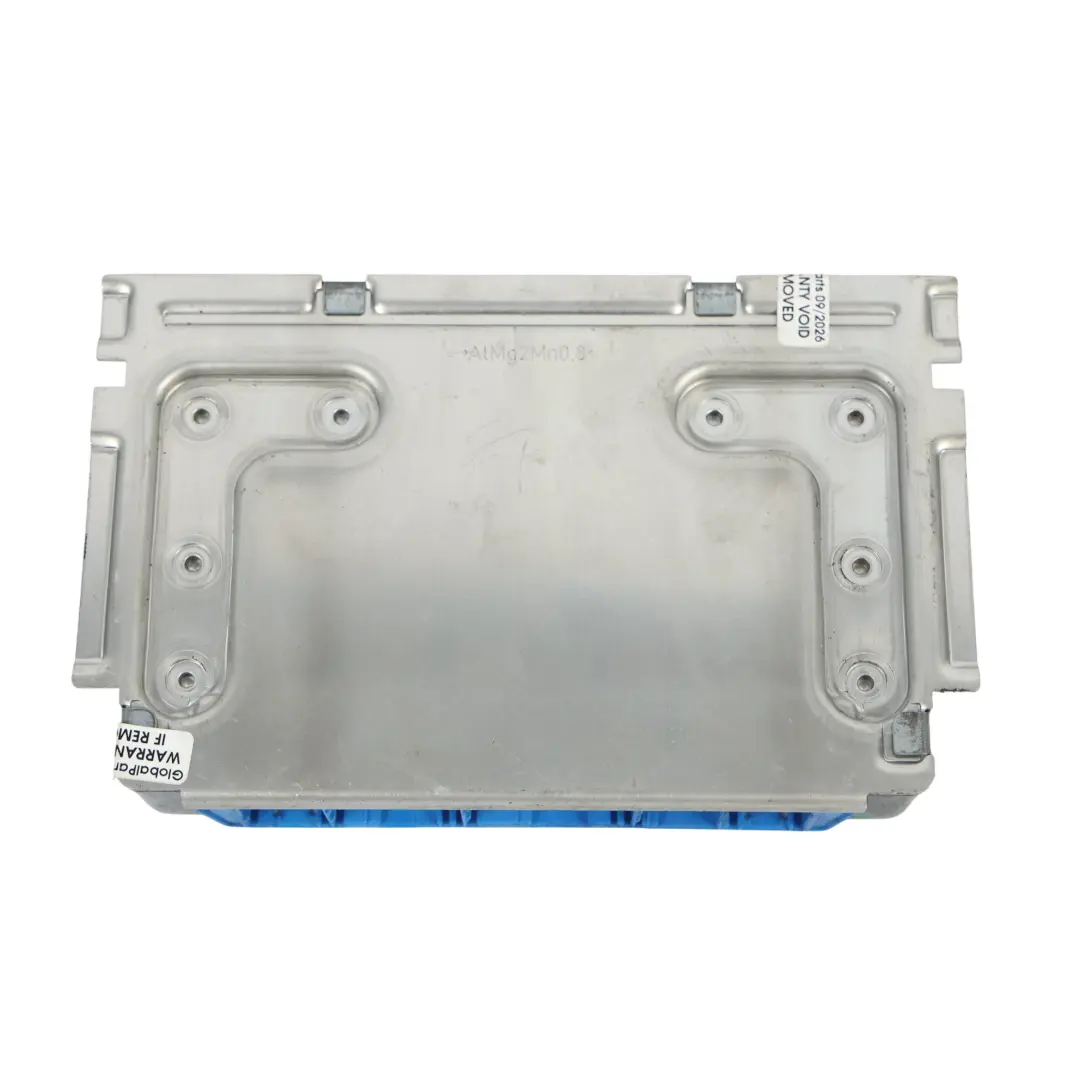

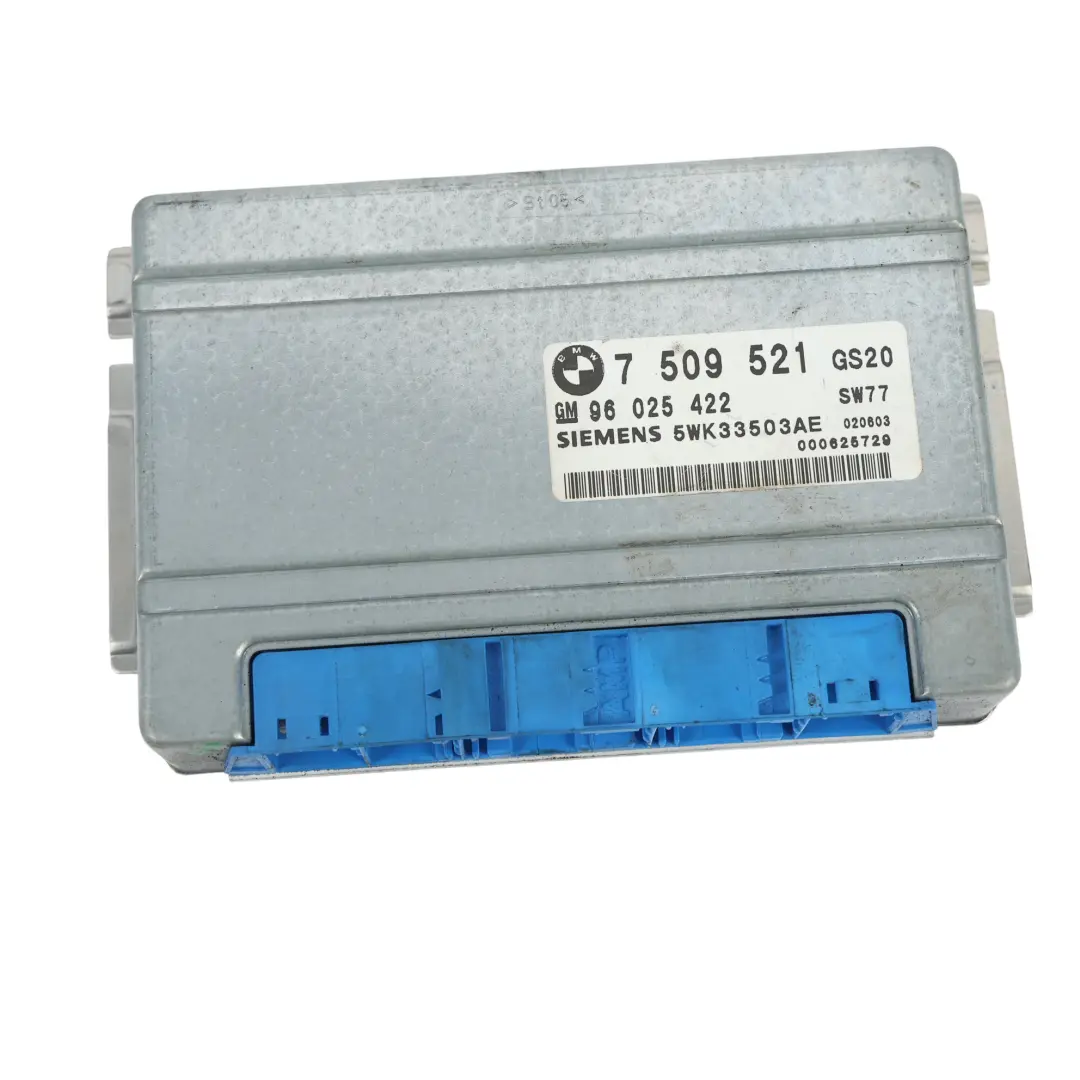

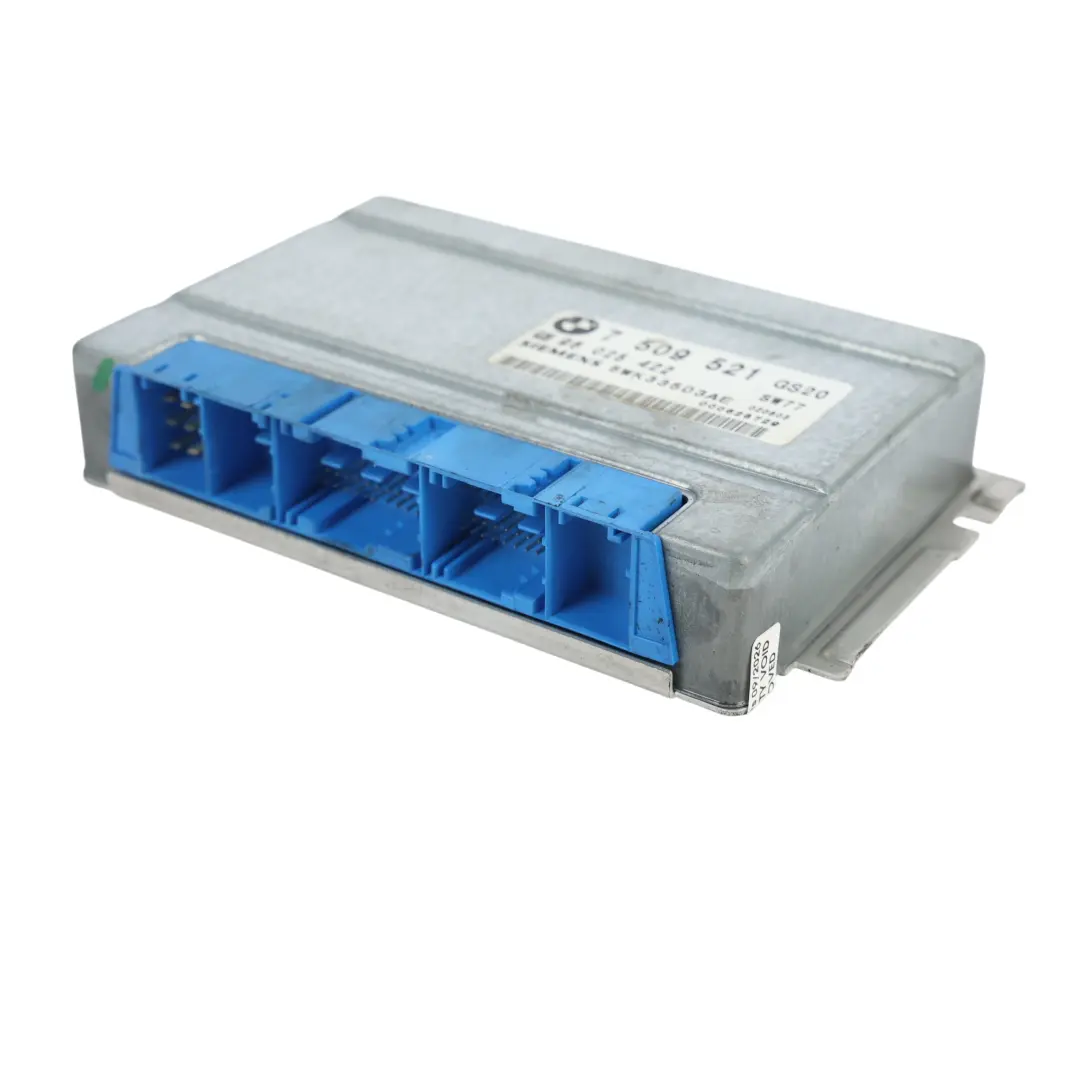

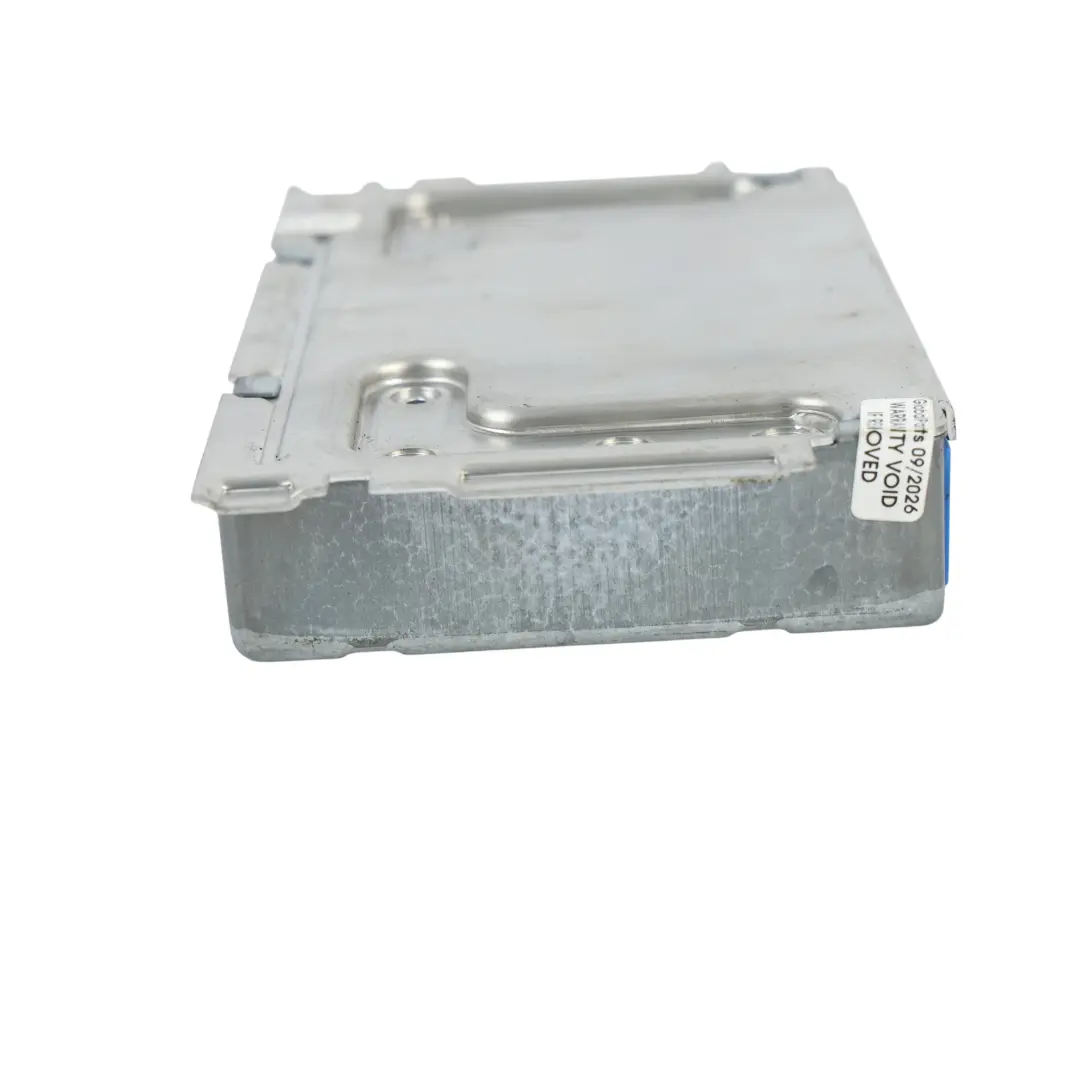

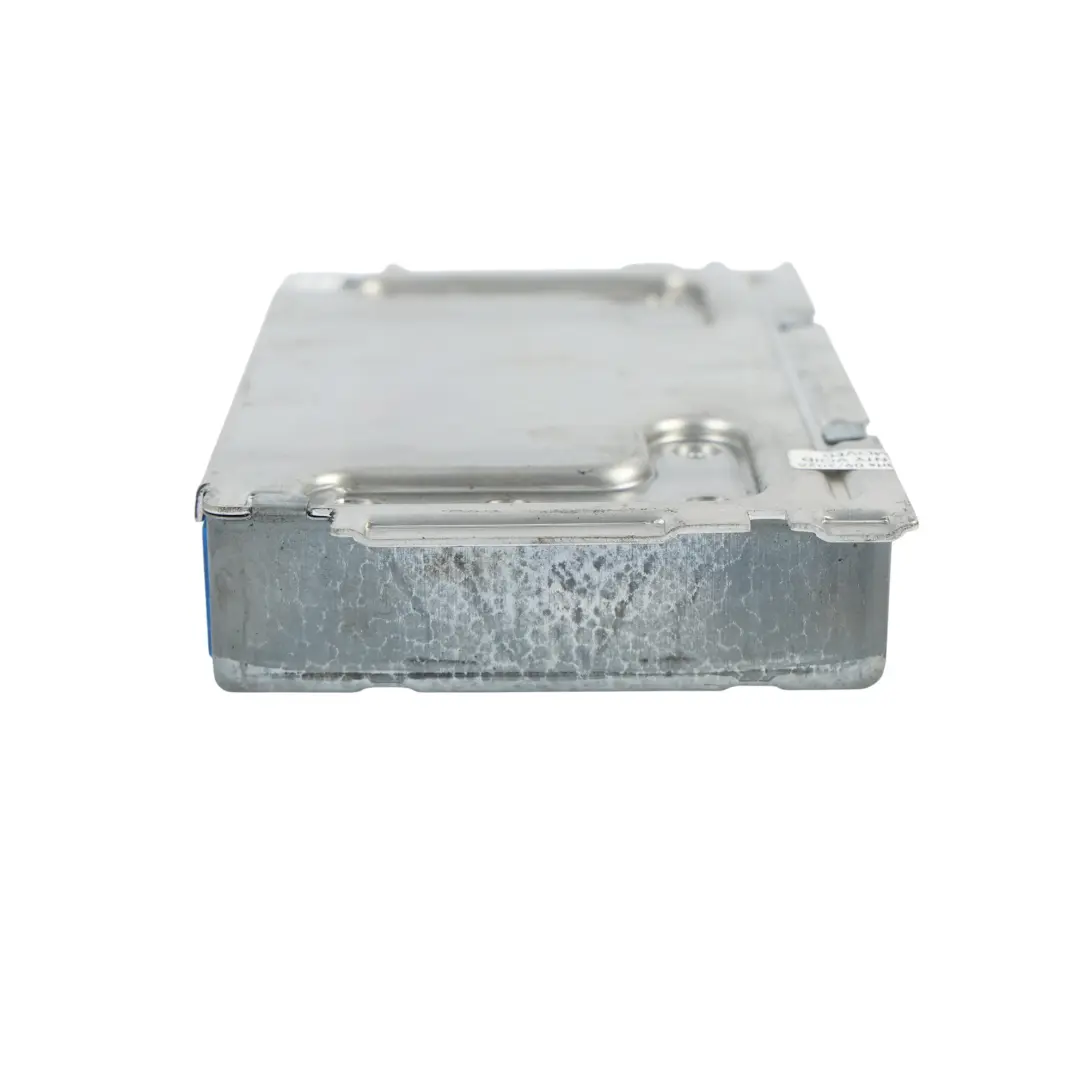

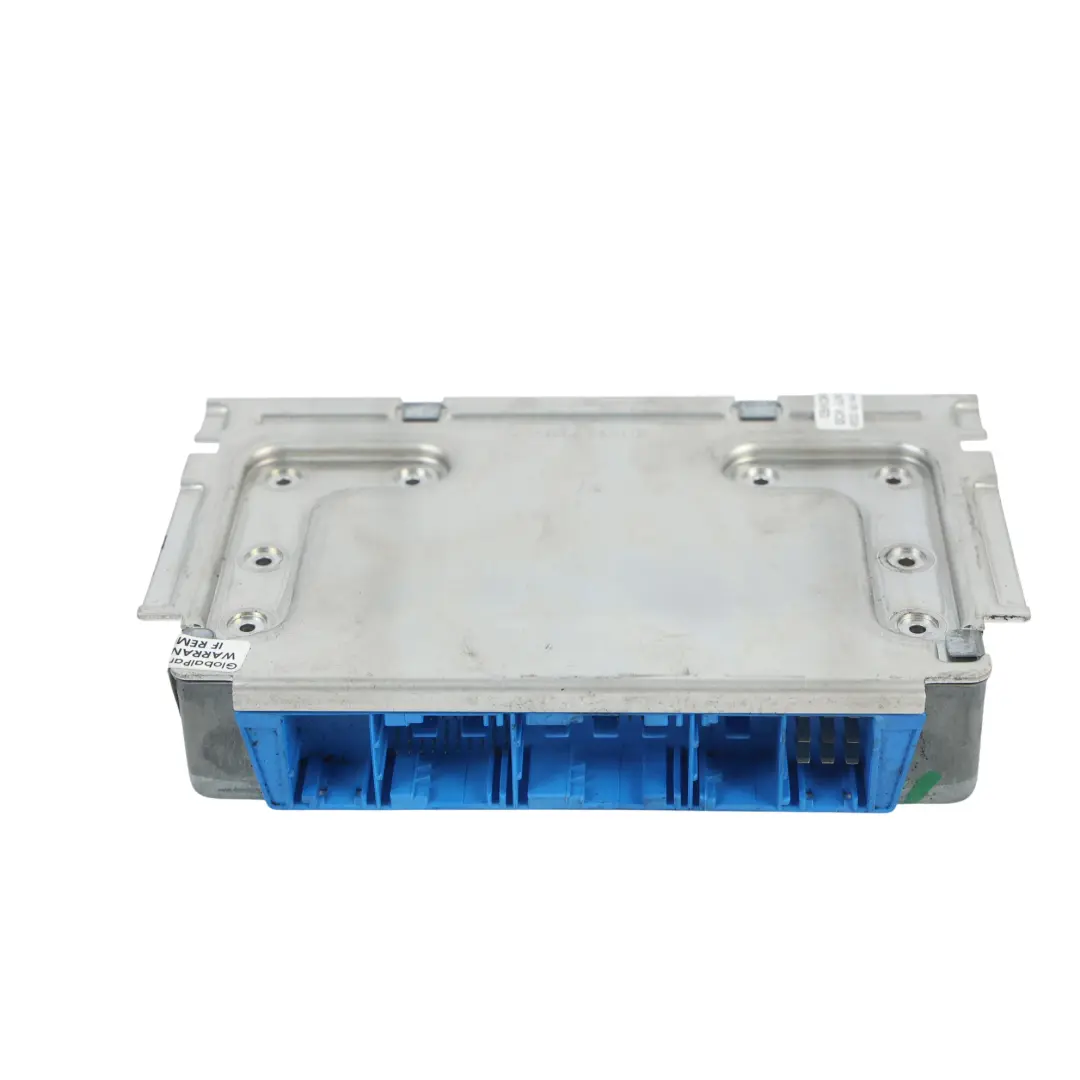

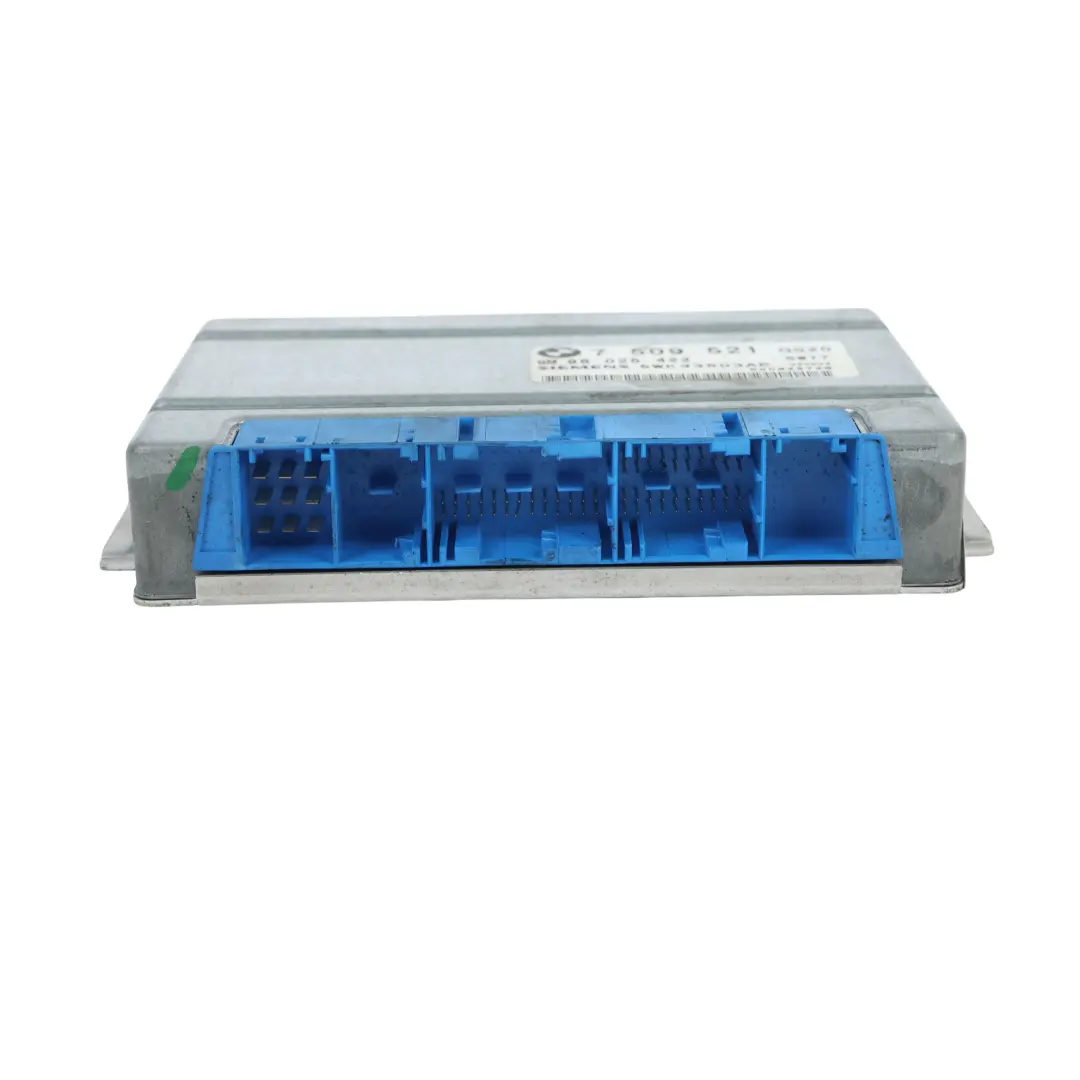

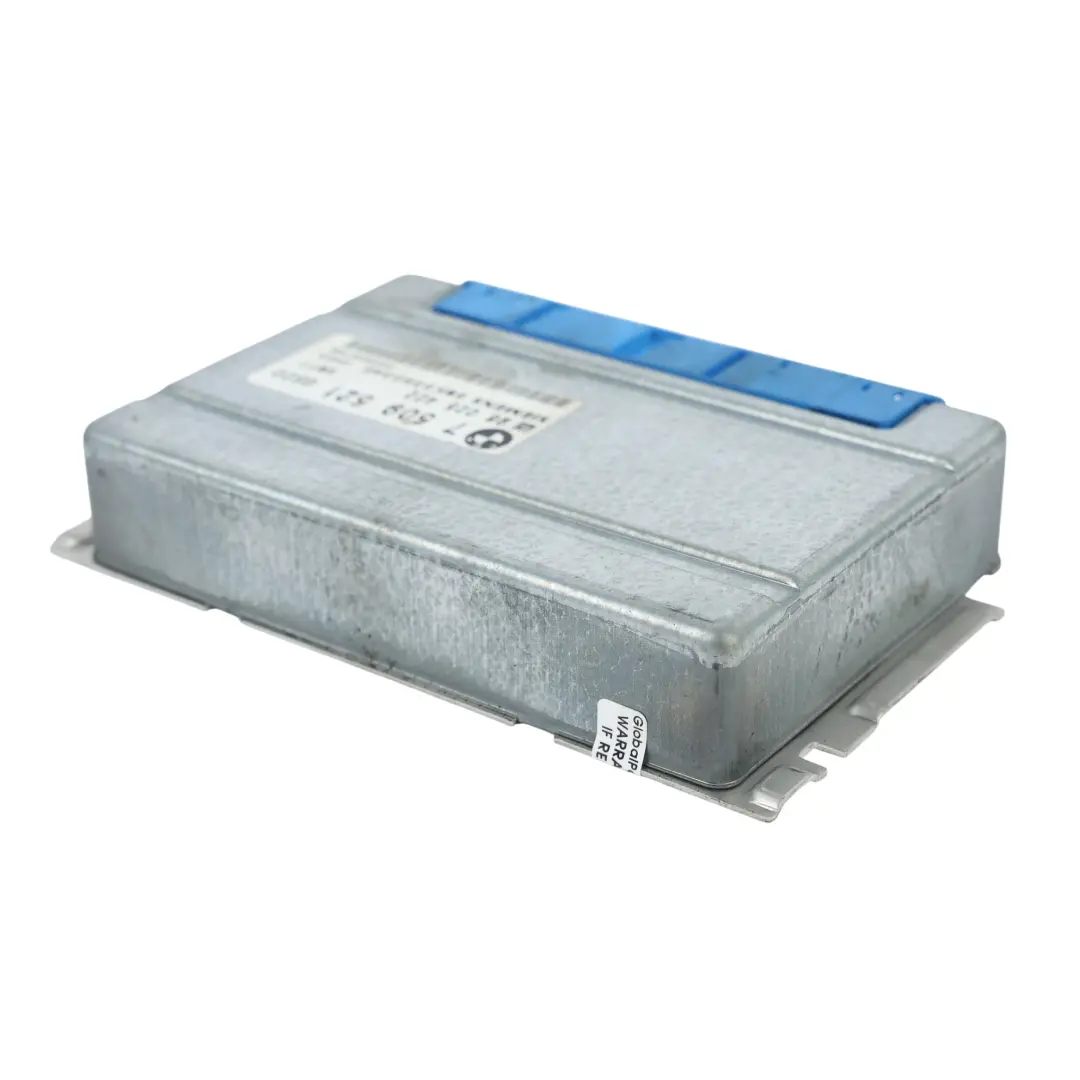

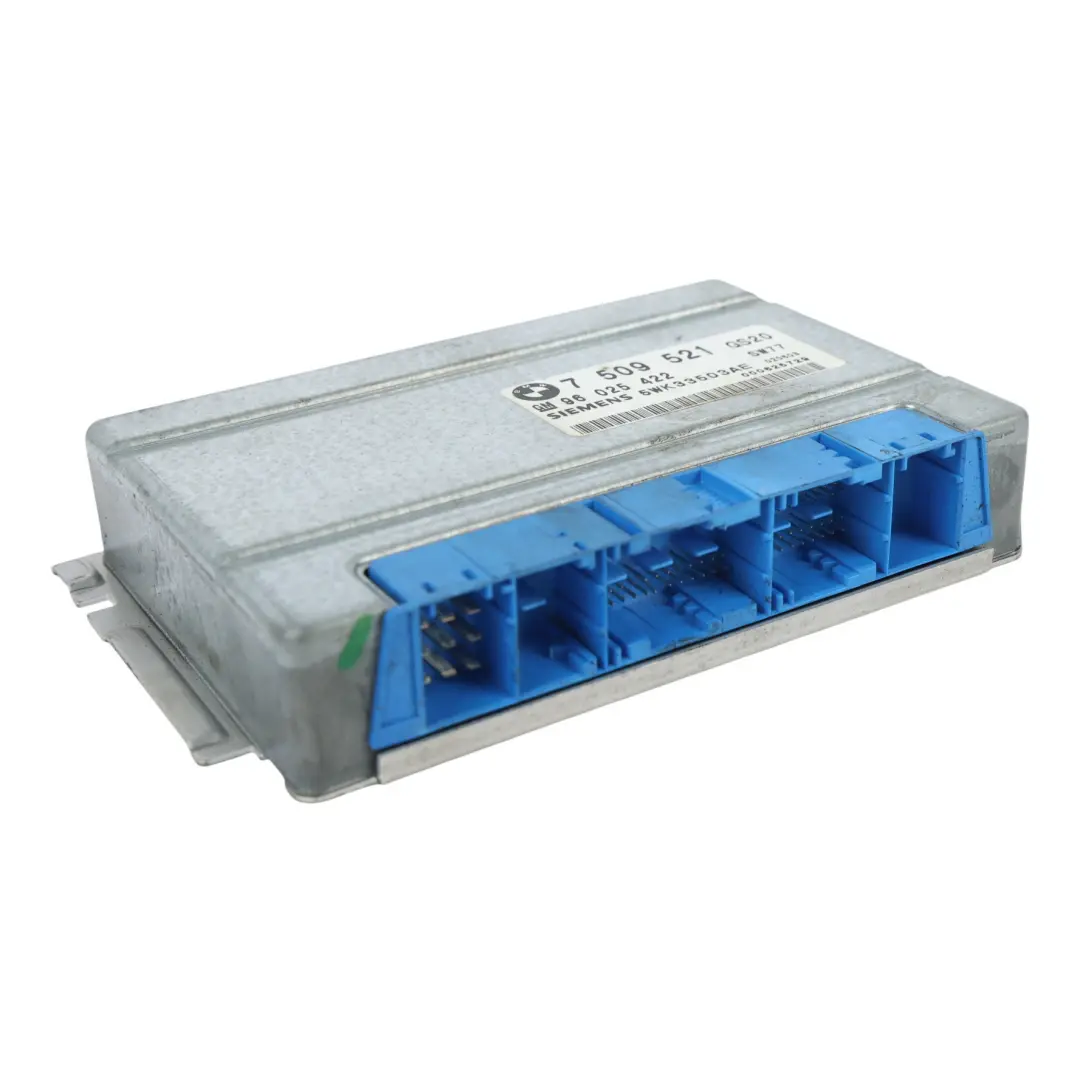

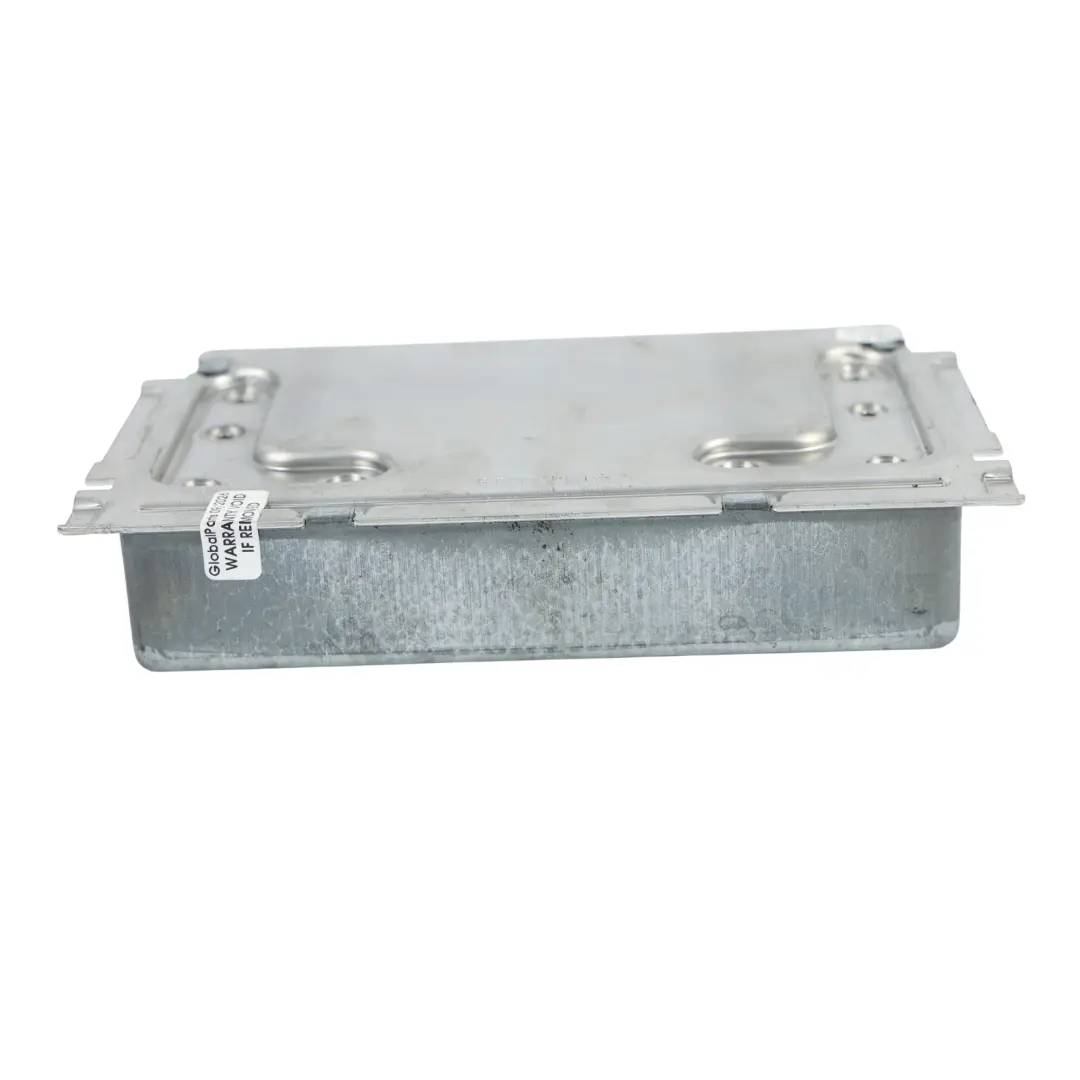

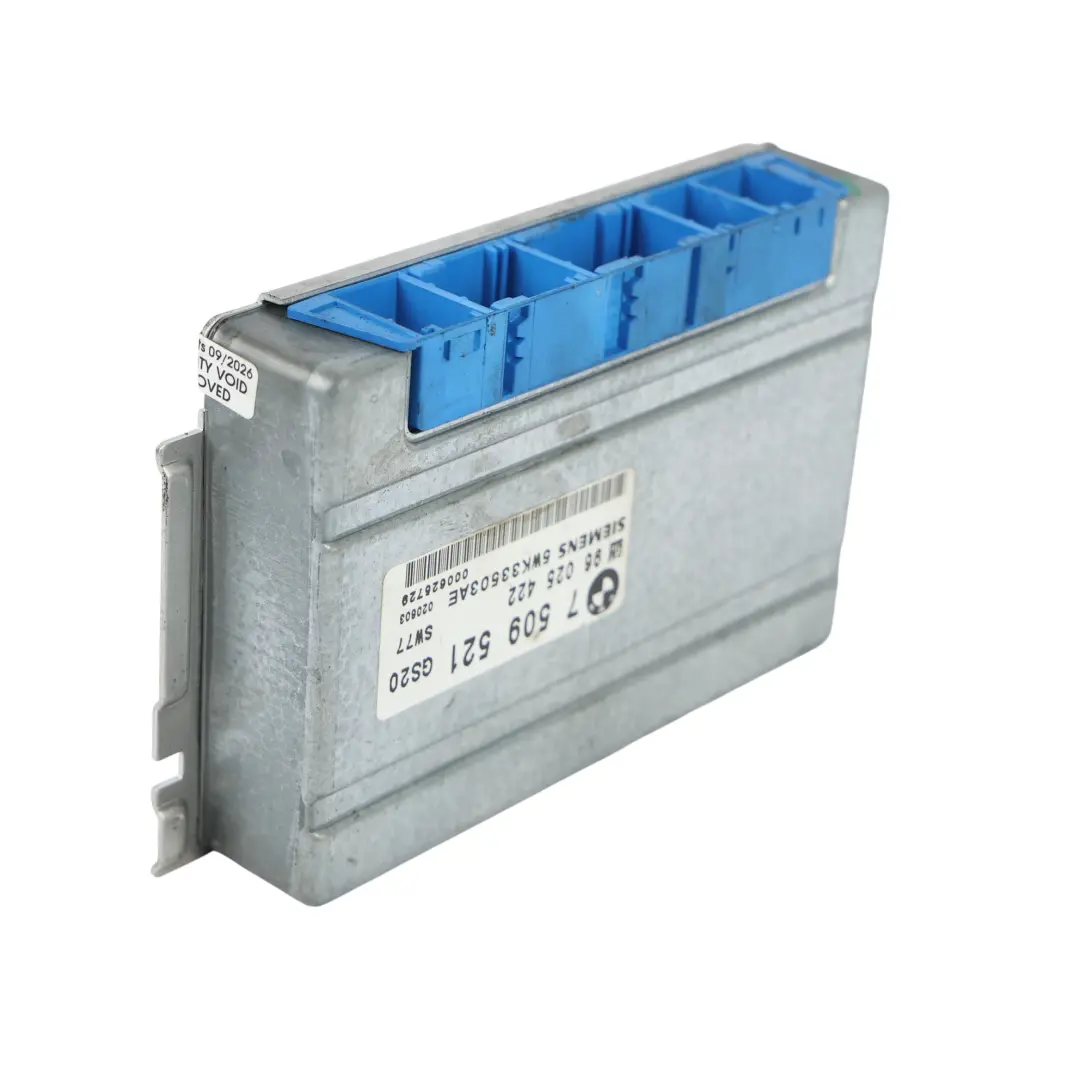

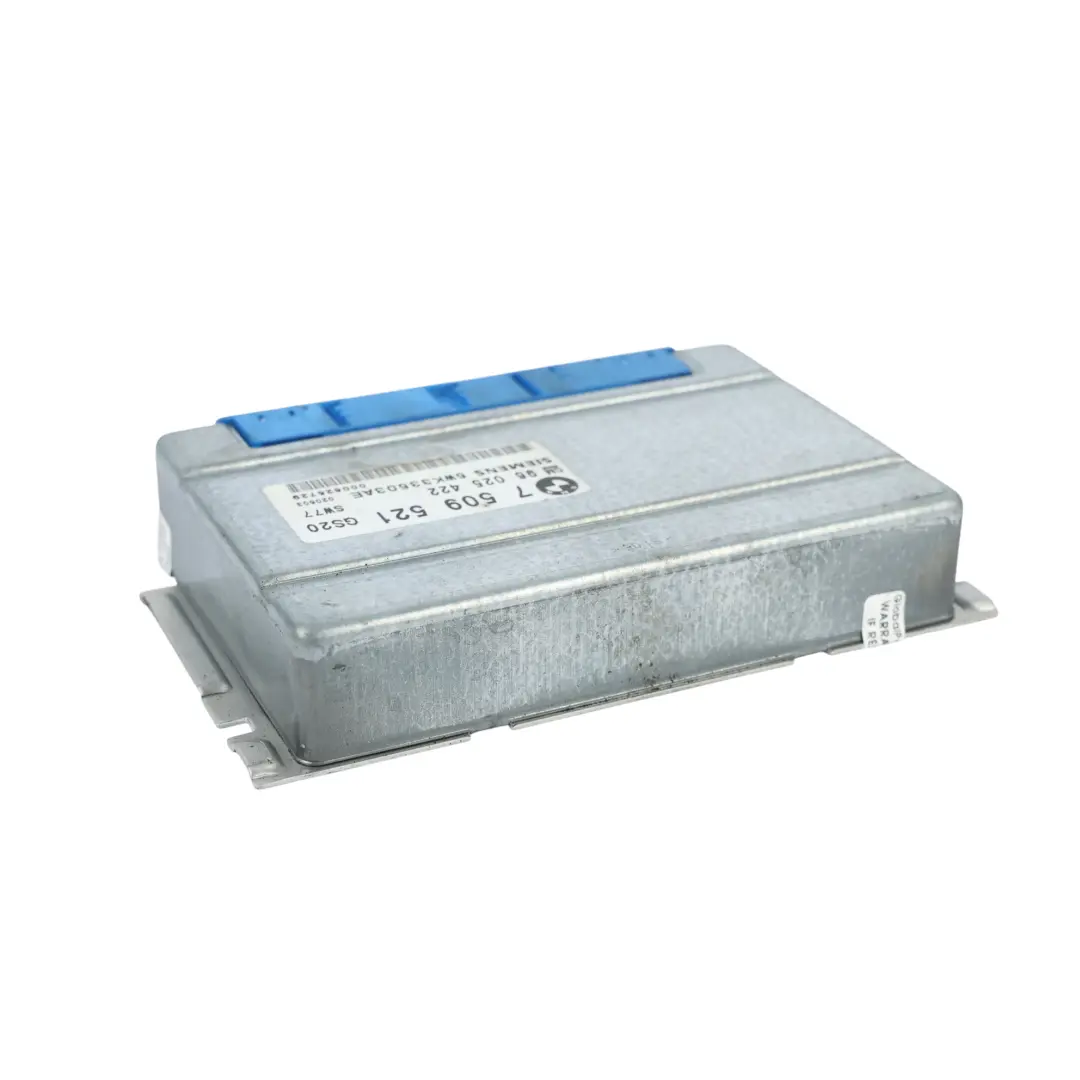

Range Rover L322 Transfer Box Shift Gearbox Control Unit Module 7509521

Range Rover L322 Transfer Box Shift Gearbox Control Unit Module is a specialized component from the Electronic control modules and controllers category, responsible for the precise management of the drivetrain operation in Range Rover L322 models. It enables stable cooperation between the gearbox and the transfer case, which translates into smooth switching of drive modes and correct operation of off-road systems.

Specifications and technical data

• SKU: 7509521
• Mark: Land Rover
• Condition: Used
• OEM Part Number: 7509521
• Substitutable numbers: 7509521, IGG000100, 1H4Z-7H473-DA, 1H4Z7H473DA
• Part type: Transmission Shift Control Module
• Category: ECUs & Computer Modules

Purpose and function of the control unit

The presented control unit is dedicated to the gearbox and transfer case system in the Land Rover Range Rover L322, where it is responsible for the electronic control of torque distribution and gear selection. The module works with sensors and other vehicle control units, ensuring consistent operation of the four-wheel drive, including off-road and on-road modes. By using an original Land Rover solution, compatibility with the vehicle's factory electrical architecture is maintained, which reduces the risk of communication errors in the CAN bus and facilitates service diagnostics.

Benefits of using an original module

Using a factory control unit in the Range Rover L322 allows for maintaining drivetrain operating parameters in accordance with the manufacturer's specifications. This is particularly important in vehicles equipped with advanced traction control systems, where the correct operation of the transfer case affects:

• correct switching of drive and reduction modes,
• stability of the automatic transmission under various load conditions,
• cooperation with off-road driving assistance systems. A used, fully functional module from this group is a solution that allows for reducing repair costs while maintaining factory control logic and compatibility with vehicle software.

Characteristics and fitment

As an element from the Electronic control modules and controllers category, the Range Rover L322 gearbox and transfer case control unit is designed to operate in a demanding environment – under variable temperatures, vibrations, and electrical loads. The module's design allows for installation in the factory location provided by the manufacturer, using original electrical installation connectors. Before purchasing, it is recommended to verify compatibility by OEM number or interchangeable numbers and compare the configuration with your vehicle. Proper fitment guarantees correct communication with other control units and minimizes the need for additional adaptations.

Product condition and service application

The module is offered as a used part, which in service practice often represents an optimal compromise between repair cost and maintaining original build quality. This type of solution is particularly attractive for complex drivetrain repairs, where replacing several components simultaneously significantly increases the cost of the entire operation. Due to the specifics of automotive electronics, installation by a workshop with experience in Land Rover vehicles and access to appropriate diagnostic equipment is recommended, which will enable potential adaptation and verification of correct operation after installation.
